Ultra 5R M Sleeping Mat

Jump to: Our Verdict / Features / Specifications

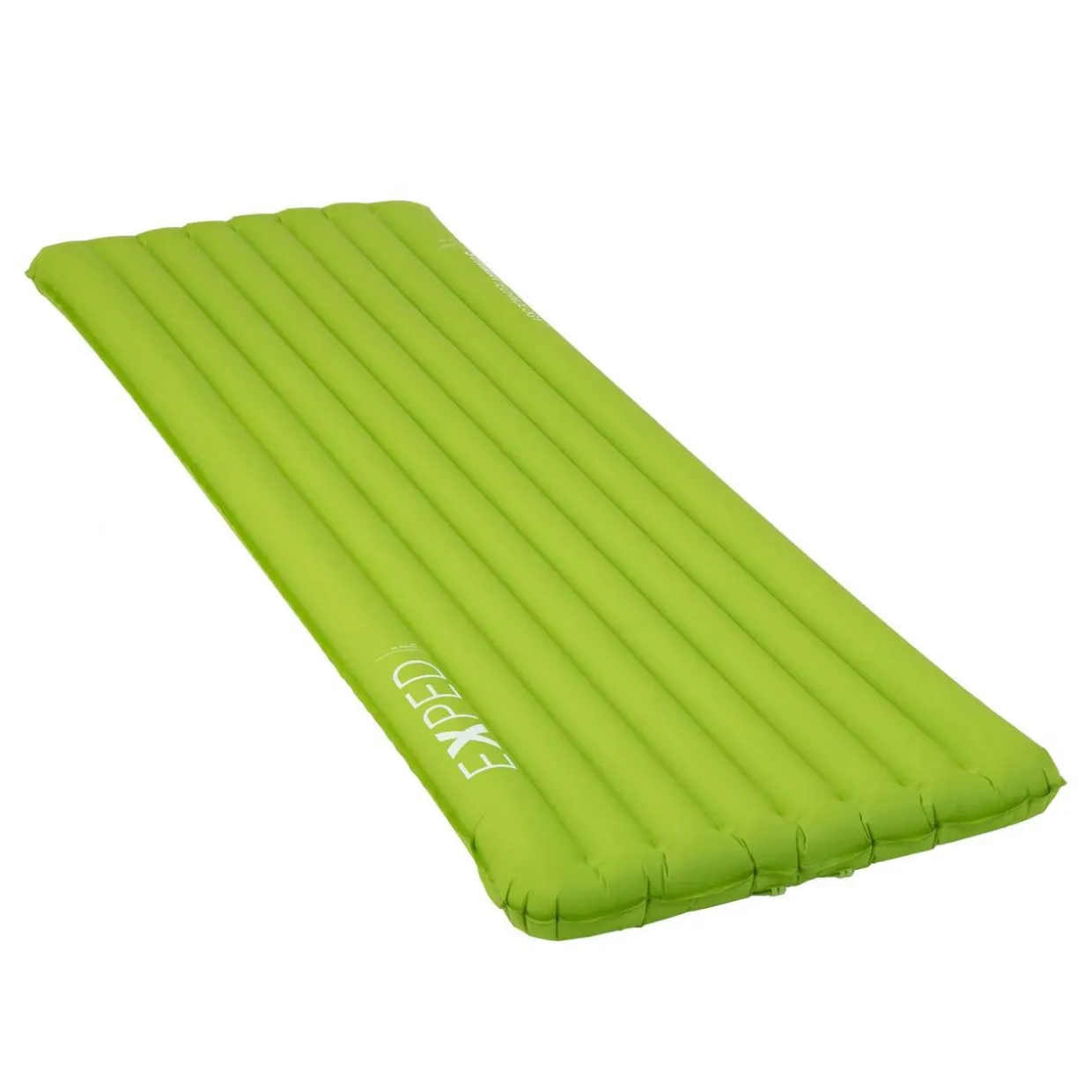

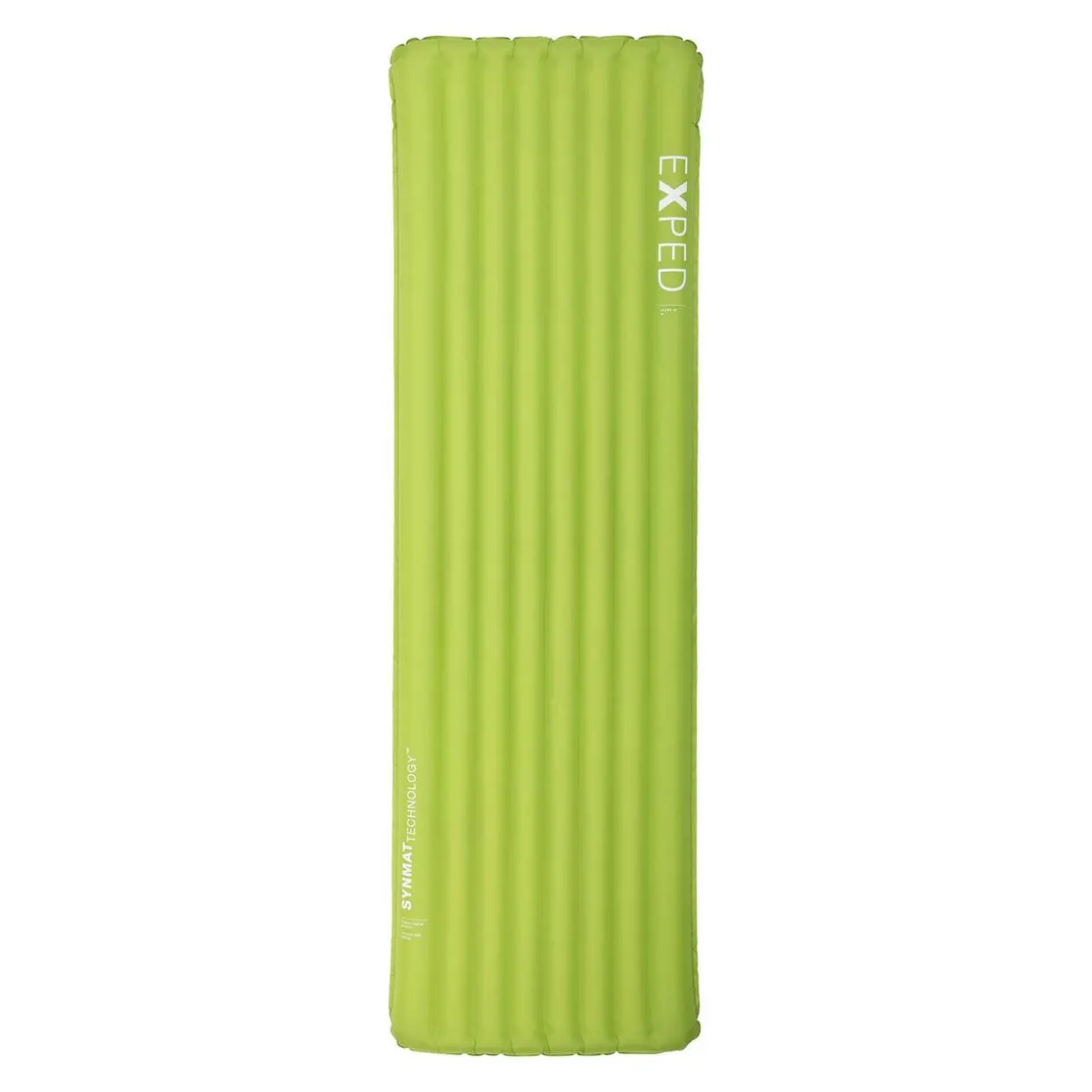

If you definitely need a full 4 season mat but you want one that’s a bit wider than the standard mat (and you can’t stand those Mummy ones) then at just 587grams this is a good lightweight option. Exped’s Ultra 5R Sleeping Mats are intended for 4 season use and have an R-Value of 4.8, the Ultra 5R M Sleeping Mat is a full rectangular mat and benefits from 160grams/m2 Polyester insulation glued to the inside of the tubes.

Exped says:

The Exped Ultra 5R M is an ultra lightweight and compact sleeping mat featuring recycled 20 D ripstop face fabric, and certified carbon neutral by myclimate. Perfect for human powered adventures including backpacking, thru-hiking, bikepacking and alpinism.

SYNMAT TECHNOLOGY™: 160 g/m2 Texpedloft insulation welded to the top and bottom of the air chambers ensures maximum warmth over the lifetime of the mat. 7 cm thick air cushion with Exped cradle comfort design: air chambers run head to toe, fully supporting the body for an unrivalled night’s sleep and giving maximum durability.

Schnozzel Pumpbag included: rapid, moisture-free mat inflation: lung power not required!

Our Verdict

Exped’s Ultra 5R Sleeping Mats are intended for 4 season use and have an R-Value of 4.8, the Ultra 5R M Sleeping Mat is a full rectangular mat and benefits from 160grams/m2 Polyester insulation glued to the inside of the tubes which are a feature of Exped’s refresh of their mat range. There are a number of sizes available, either Rectangular or Mummy shaped, in Regular or Longer & Wider versions. this one is 13cm wider than a standard mat.

The Ultra series are made using 20D face fabric which of course won’t be as robust as heavier mats but in our experience its still good for the job, especially if it make the mat lighter.

What we really like about Exped mats are the easy to use non return valves and the superb Schnozzel Pumpsack which makes inflation of the mat simple – its the best inflation sack we’ve used by far and its big enough to act as a rucksack liner or a drybag.

The Ultra 5R mats are 7cm thick, which is standard and gives a good level of comfort, all have slightly thicker side rails which act to discourage you from rolling off the mats – packed sizes are very small too.

We also need to commend Exped for their environmental approach to the new range – Production is Carbon Neutral (by offsetting), the Face Fabrics are recycled and their factories are Bluesign approved. There is very little packaging and what there is is simply constructed from recycled card.

If you definitely need a full 4 season mat but you want one that’s a bit wider than the standard mat (and you can’t stand those Mummy ones) then at just 587grams this is a good lightweight option.

– Reviewed by Ultralight Outdoor Gear

Features

• RECYCLED 20D RIPSTOP POLYESTER: Recycled polyester keeps plastic out of landfills and uses less water, energy and carbon to produce. Our new ripstop fabric is two to three times stronger than our previous ultralight fabric.

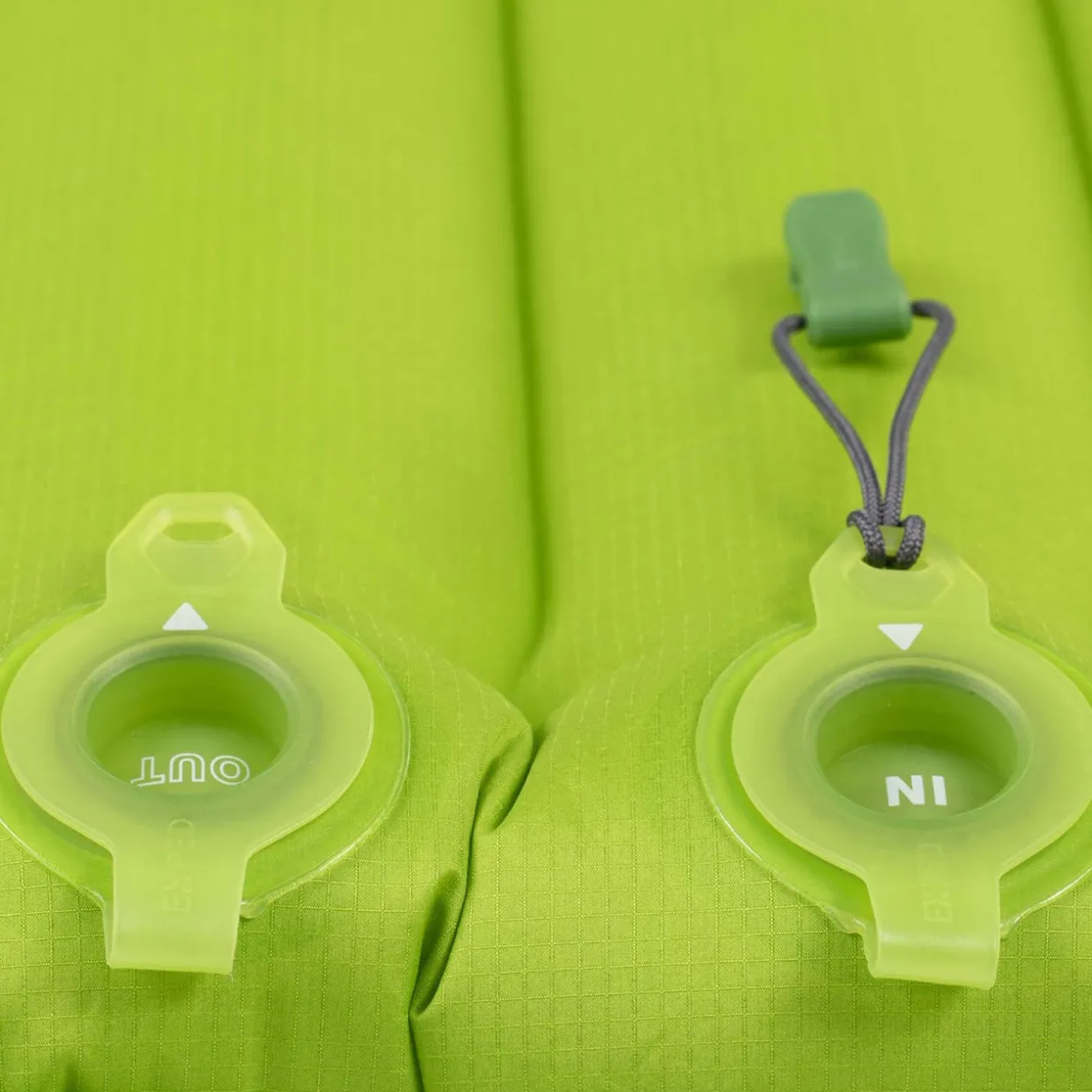

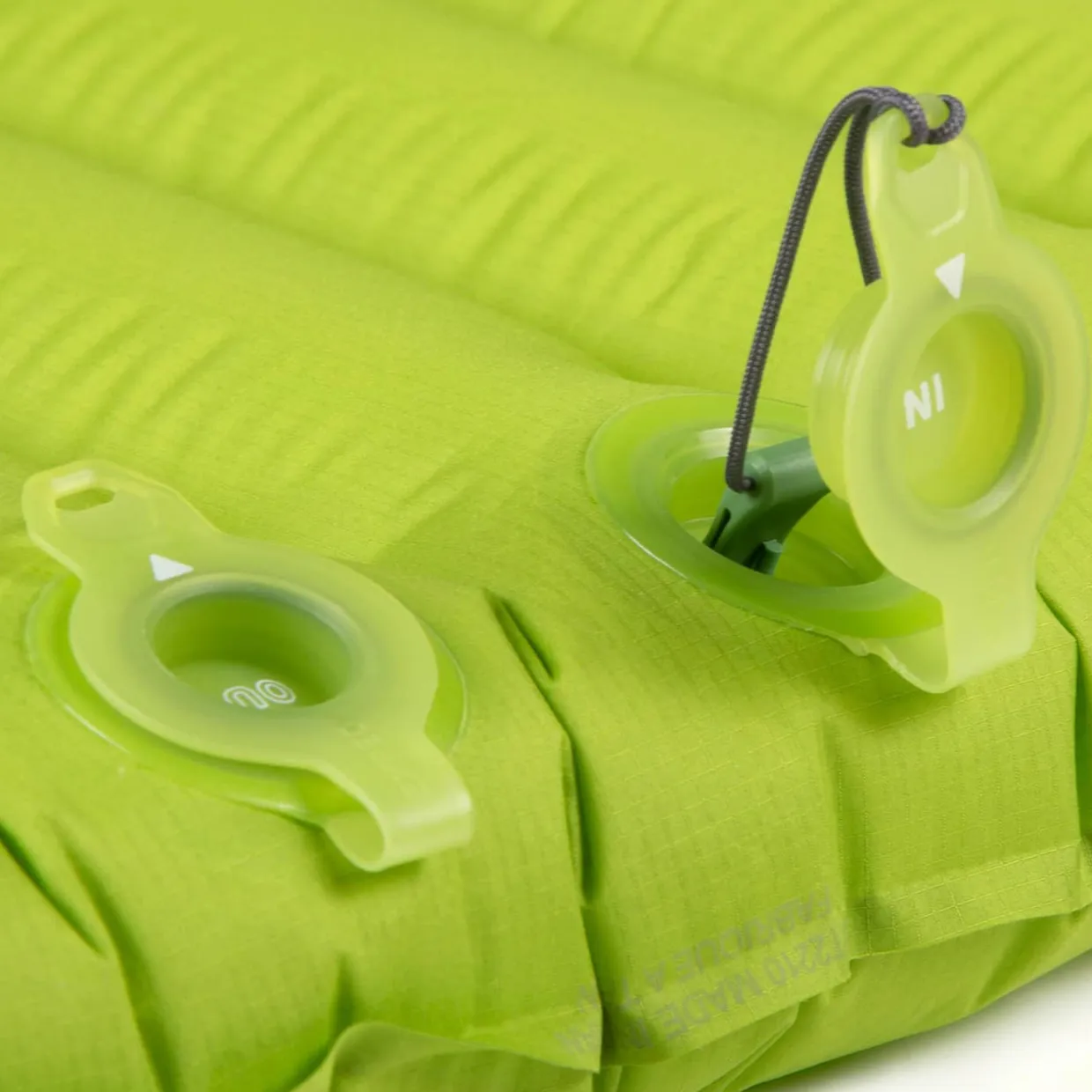

• FLATVALVE: Pioneered by EXPED. Industry-leading durability, reliability and intuitive performance.
• SYNMAT TECHNOLOGY: 60 g/m2 Texpedloft insulation welded to the top and bottom of the air chambers ensures maximum warmth over the lifetime of the mat.
• COMFORT CRADLE: Air chambers run head-to-toe, fully supporting the body for an unrivaled night’s sleep and increased durability. EXPED’s exclusive Comfort Cradle side rails center and secure the sleeper on the mat.

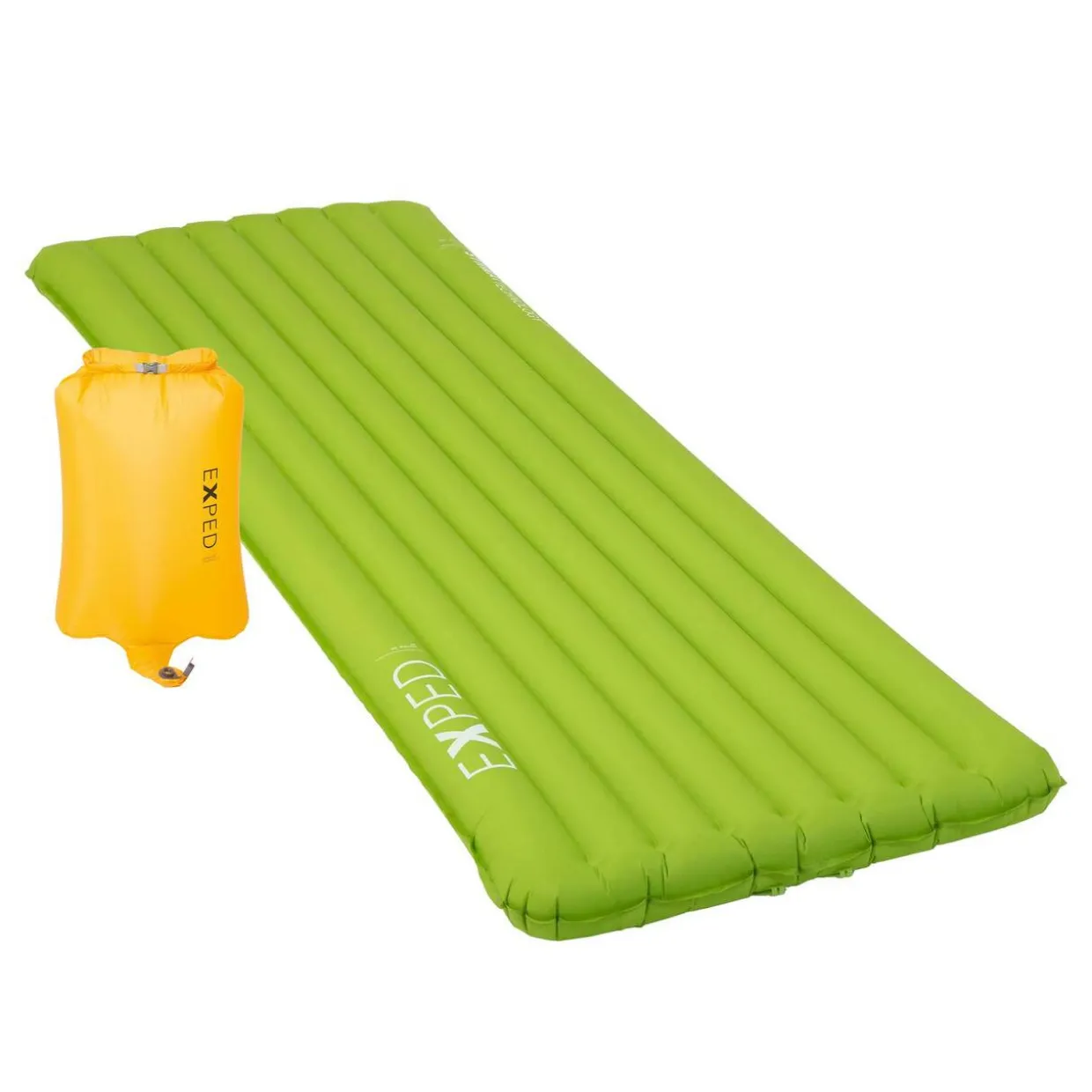

• RECYCLED SCHNOZZEL PUMPBAG AND STUFFSACK INCLUDED: Rapid, moisture-free mat inflation: lung-power not required!

Specifications

• Weight: 587g (excludes storage bag/pumpsack)
• Pumpsack weighs: 57g
• Dimensions: 183 x 52cm
• Thickness: 7cm
• Packed size: 31 x 13cm
• ASTM R-Value: 4.8
• Exped temp rating: -20°C

Material & Construction

• Recycled 20D ripstop polyester, Oeko-Tex® 100 certified
• Insulation: 60 g/m2 Texpedloft microfiber, bluesign® certified

ASTM R-Value:

From 2020, there is a new industry standard for measuring the R-value (level of insulation) of sleeping mats – ASTM F3340-18. This new standard is the sleeping mat equivalent to the EN rating for sleeping bags.

You can now directly compare the R-value of mats rated using the ASTM F3340-18 with confidence that is a fair and accurate comparison between mats. In simple terms, the higher the R-value, the warmer the mat.

In general terms, an R-value below 2.0 is for summer use, 2.0 to 4.0 is for cooler 3 season use and 4.0+ is for winter temperatures. This will be also be dependent on your sleeping bag, how cold you sleep etc. Please contact our customer service team if you need advice on choosing the right mat for your activity.
