Spirit Burner with Screwcap, Washer and Simmer Ring

Jump to: Our Verdict / Features / Specifications

Spirit burner for alcohol-based fuels. Easy to use due to its simple construction. Suitable for families, hikers, scouting groups and others who want to have a simple and functional burner.

Trangia says

Spirit burner for alcohol-based fuels. Easy to use due to its simple construction, has no loose parts that can break and is maintenance free. The simmering ring regulates the heat and is used to save fuel or to extinguish the flame. The burner is made from brass and the wick inside is made from 100% cotton. Yellow bag is included. Works in all weather conditions. In severe cold, from about +5C a Winter attachment with Preheater can be used which makes it bloom faster and gives better effect (sold separately).

Our Verdict

A classic meths stove, with a very robust brass construction, you won’t accidentally crush this stove like you might some of the lighter aluminium ones.

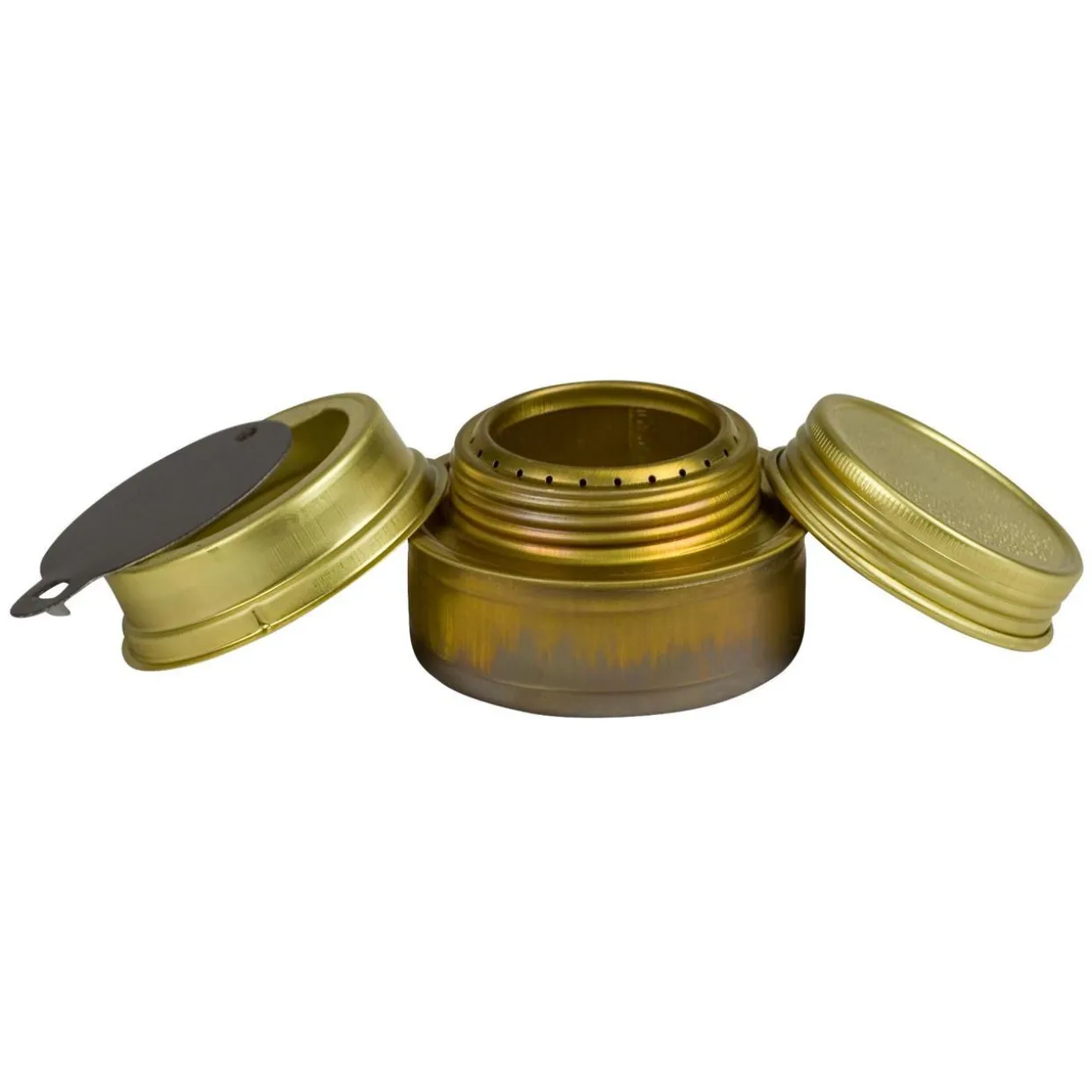

Simmer ring – when open and placed over the Trangia meths burner will give a simmering flame, and when closed can be used to extinguish the burner. Very handy when you’re trying to actually cook rather than just boil water.

The Screw cap can be used for extinguishing the burner , but first remove the rubber washer from inside the cap as this may melt when extinguishing the burner. (Do not screw the burner cap on tightly to the burner whilst the burner is still warm, as when it cools down the cap will become very difficult to remove)

– Reviewed by Ultralight Outdoor Gear

Features

• Fuel: Use alcohol-based fuel only. Never use gasoline or other petroleum based fuels as this may result in serious injury and damage the wick inside the burner.

• The name of suitable spirit fuel varies around the world. For more info please read the instructions and see the list of suitable fuels, fuel list →. In Sweden we recommend using T-Tenol from the brand Kemetyl as a first choice.
• Fuel consumption: One filling 100 ml (max. 2/3 of its maximum volume) will burn for approx. 25 min. Boils 1 Litre of water in 10 min (this varies according to weather and quality of fuel).
• The The spirit burner can be used in: All Trangia stoves 25 Large + 27 Small, Trangia Triangel, Open spirit stove, Mini Trangia.

Specifications

• Weight: 111g
• Dimensions: 75 x 42 mm
• Cooking time (1L): 10 minutes
• Output: 1000 w/ 3500 btu
• Material: Brass
