Q1r 550 Torch

Jump to: Our Verdict / Features / Specifications

The Q1r penlight has 550 lumens from a CREE LED, allowing for excellent run times and versatile operation. A standout feature is the electronic switch that provides step-less dimming from 125 to 6 lumens.

Suprabeam says:

Redefining the classic Suprabeam penlight – Introducing the Q1r.

The Suprabeam Q1r has been equipped with a powerful Li-Po battery, internal USB-C charging, electronic switch, and a super efficient LED chip. This perfect combination delivers astonishing 550 lumen, but the flashlight is still the size of a pen!

This extraordinarily bright penlight is the perfect tool for any inspection job, with enough power to light up details in the distance or in really dark surroundings. Q1r is as compact as a normal pen, and fits perfectly in any pocket

Our Verdict

The Q1r redefines what a compact penlight is capable of. With an astonishing 550 lumens from its CREE LED, this pocket-sized aluminium torch packs the punch of much larger lights. Yet its ingenious electronic driver and rechargeable lithium-polymer battery allow for excellent run times and versatile operation.

One of the standout features is the electronic switch that provides step-less dimming from 125 lumens down to a firefly 6 lumens. This gives you precise control to set the perfect brightness for any task. The dimming also extends battery life up to an incredible 50 hours on the lowest setting. To quickly access the maximum 550-lumen output, just hold the rubberised button for over 0.6 seconds.

The optics are also quite impressive. A rotating Hyperfocus system smoothly transitions from a wide 70° floodlight to a focused 20° spot beam. This flexibility ensures proper lighting whether you need up-close illumination or to light objects up to 100 meters away.

The integrated USB-C charging port hidden under the clip makes keeping the light powered easy. In just one hour, you can top off the sealed battery from any USB source. A small LED indicator shows the charging status.

While incredibly bright for its size, runtimes on max are still limited to 1 hour due to heat buildup, and the non-removable battery means you can’t simply swap cells for extended runtimes when drained.

– Reviewed by Ultralight Outdoor Gear

Features

• INTERNAL USB-C CHARGING – Compatible with USB-C. This enables you to charge everywhere, either with a 5V/2A adapter, through your computer or with a car charger. Charge up to 80% in only 1 hour.
• The Q1r is our most powerful pen torch to date. With 550 lumens you get extreme power out of a torch that fits right in your pocket.
• The rotating Hyperfocus™ lets you go from flood to spot with a light turn of the lamphead. Control the focus with two fingers and switch quickly from 20 degrees to 70 degrees.

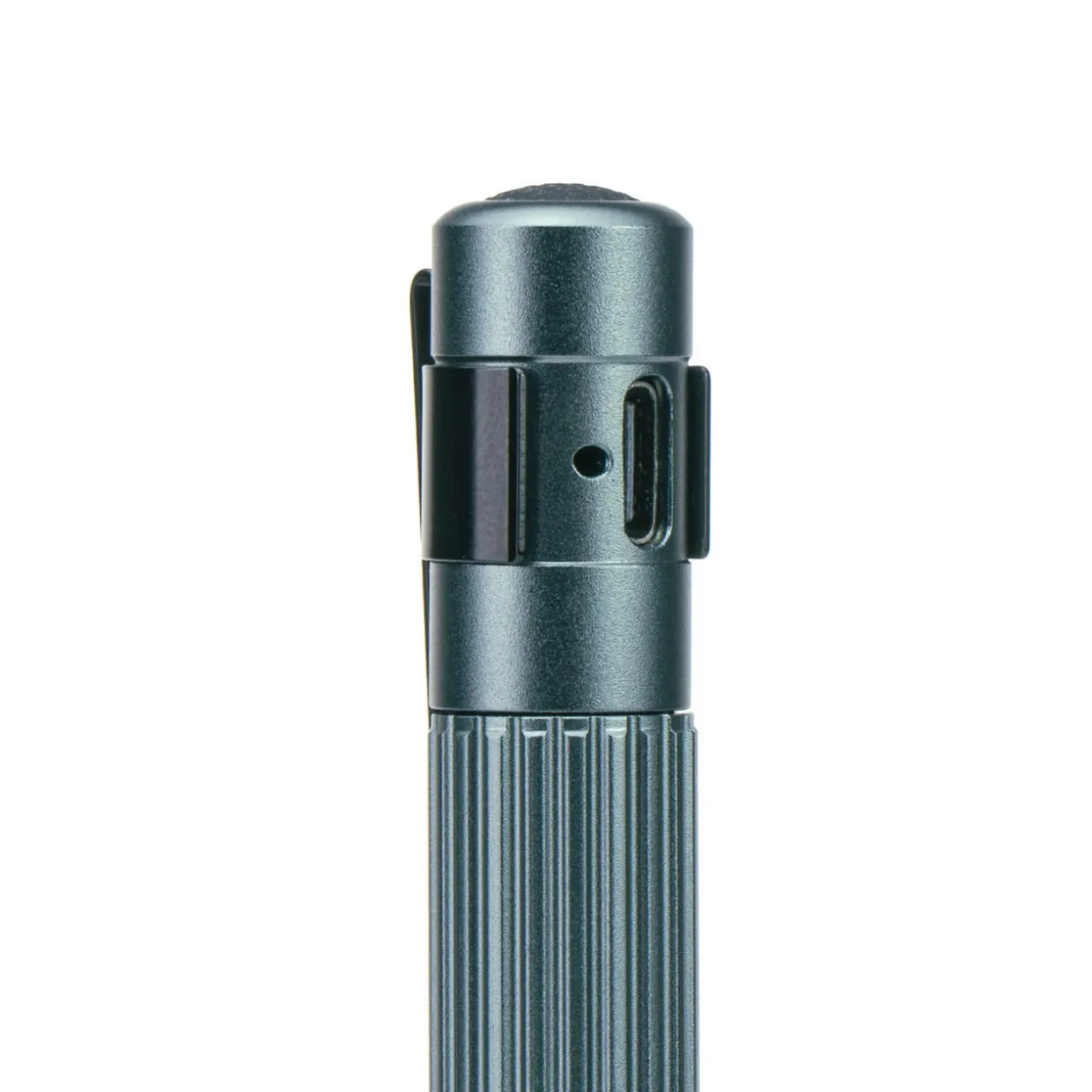

• The Q1r features an extremely simple charging system. Simply rotate the clip to reveal the USB-C charging port, from where the penlight can be charged. While charging, the small light next to the micro-USB port will shine red, and when the battery is fully charged it will turn green. With a battery life of up to 50 hours, there is plenty of light to last several workdays on a single charge
• Q1r features an electronic dimming, as found on the Suprabeam headlamps. The main benefit of electronic dimming is that it enables you to adjust the light level to your specific preference. The Q1r dims from 125-6 lumens, and it will continue to dim up and down as long as the switch is pressed.When turned off, the electronics will remember your chosen light setting and the next time you turn on your torch, it will start up in the same light level.
• The Q1r is equipped with an intelligent electronic switch, that makes it possible for you to adjust the light level precisely for your needs. The torch is activated on the last used light level by a short press/click, and a press over 0,6 sec. will put the torch in MAX. Dimming is activated from OFF state by pressing and holding the switch until the desired light level is reached.

  The switch is solid rubber with an extra-grip texture, which gives you the ultimate control in all situations.

  MAX= Maximum light output (550) lumens
  DIMMING= Stepless dimming from 125 to 6 lumens

Specifications

• Brands stated weight: 48g (including battery)
• LED: 1 CREE Power Chip
• Dimensions: L: 144mm, ø 15mm
• IP Rating: IP20
• Temperature: -20°C to +50°C
• Controller: Yes, DIM and STEP mode
• Power Source: Li-Po 10780 720 mAh (2.66 Wh) 3.7 V. (Battery can’t be removed)
• Accessories: Attachment Clip, USB-C Cable

Power

• Beam Distance: Variable from Spot to Floodlight / 100 Meters
• Luminous Flux (Dim mode): Max: 550 lm / Dim: 125-6 lm
• Lighting Time (Dim mode): Max: 1h. / Low dim: 50h
• Luminous Flux (Step mode): Max: 550 / Medium: 100 / Low: 50
• Lighting Time (Step mode): Max: 1h / Medium: 2h 15min / Low: 4h 45min

Material & Construction:

• Case: Anodized, Aluminium
• Switch: Electronic Switch with Solid Silicone Button
